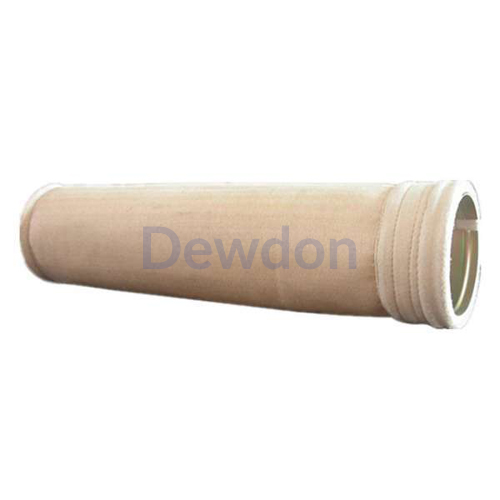

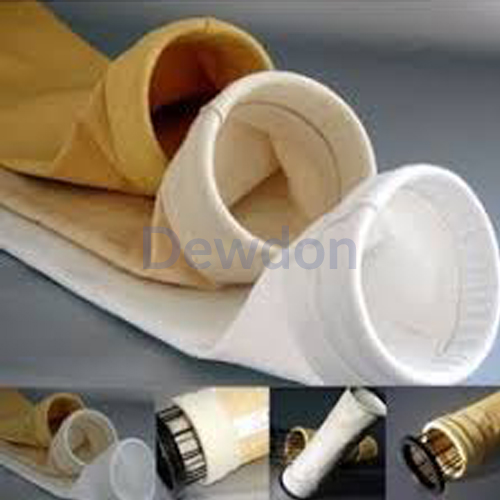

Dewdon’s Non-Woven Fiberglass Filter Bags are special kind of high temperature resistant filter bag with reasonable structure and excellent performance.
Our Non-woven fiber glass filter bags are excellent in Anti-Acid and Anti-Alkali. Service life for Non-woven fiberglass filter bags are >4500 hours and the filtration resistance is low.
|Product Name||Baghouse Non Woven Fiberglass Filter Bag for Cement Plant|
|Continue Temp||260 degrees|
|Peak Temp||300 degrees|
|Length Elongation at break||Less than 10%|
|Cross Elongation at break||Less than 10%|
|Length Tensile Strength (N5*20CM)||More than 2800|
|After Treatment/Finish||Calendaring, Singed, Heat-set, PTFE membrane, PTFE macerate, Oil and water proof|
|Application Field/Use Scope||Cement and Steel plant, Coal-fired power plant, Chemical Industry, Instruction, waste incineration plant, Circulating fluidized bed boilers, etc.|
High Temperature Resistance:240-280.
Excellent in Anti-Acid and Anti-Alkali.
Abrasion resistance, high tensile strength.
Long Service Life: >4500 hours.
Low resistance of filtration.
Single fiber, high porosity, gas filtration resistance.
Can be used in a variety of complex situation and harsh environmental conditions.
Can be customized.
Chemical plant Cement plant
Steel iron plant Melting plant
Carbon black plant Electricity Industry.
