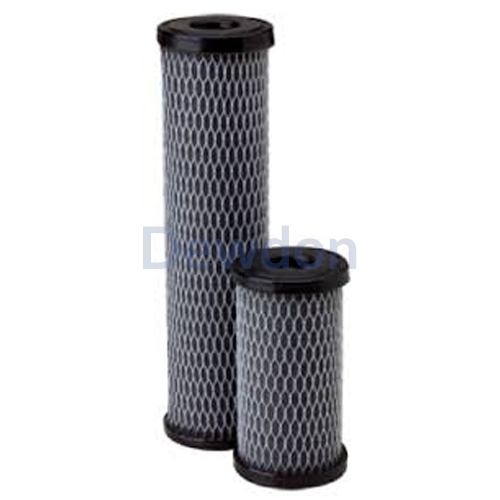

Dewdon’s Activated Carbon Filter cartridges reduce chlorine, color and odors caused by dissolved organics, and turbidity from aqueous and organic liquids. All materials are constructed of FDA listed materials for food contact and may be used for drinking water and potable liquids. The easy-to-change disposable cartridge contains about 33 cubic inches of premium grade granular activated carbon. The activated carbon adsorbs dissolved organics, and reduces chlorine. An integral 5 mm prefilter reduces various particulates to eliminate premature clogging of the carbon bed, while a 5 mm post-filter reduces carbon fines that may shed from the bed.
High chlorine, taste and odor reduction capacity.
Extended dirt holding capacity.
Substantial carbon volume with maximum service life.
Available with 10 & 20″ in 2.5 & 4.5″ OD.
No carbon powder release.
Filter media: Mineral AC & Coconut shell AC.
End cap: PP.
Outer diameter: 70mm, 115mm
Inner diameter: 28mm
Maximum operating temperature: 52°C
Maximum differential pressure: 7 Bar at 20°C
|Model CTO Material||Micron Rating||Length|
|Mineral AC||10:10um||10: 10''|
|Coconut shell AC||30: 30''|
Electronic, power industry: pure water, gas, electroplating liquid, printing line version etc.. Chemical, petroleum and chemical: solvent, coating, the magnetic slurry, detergent, liquid wax etc. The pharmaceutical industry: hospital water, pharmaceutical injection, Etcc..
Industrial Water Treatment
Drinking Water Treatment
